Analog IC vs Digital IC: How They Work and Where They Are Used

Choosing between an analog IC and a digital IC sounds simple at first. One handles continuous signals. The other works with binary data.

A sensor signal may be analog, yet the system still needs digital processing. A microcontroller may have an internal analog-to-digital converter, but it may still need an external amplifier, filter, voltage reference, or protection circuit. The chip type alone does not tell you whether the design will work.

I am Lori, and I have worked in electronic component sourcing for more than 15 years. When I review a bill of materials, I rarely look at the words “analog” or “digital” first. I check the signal path, supply voltage, package suffix, temperature grade, noise limits, timing, lifecycle status, and the documents the buyer needs. Those details usually decide whether a component is truly suitable.

This guide explains Analog IC vs Digital IC operation from both an engineering and purchasing view. It will help you choose parts, review alternatives, and communicate better with an Analog IC Distributor, Digital IC Distributor, or full-service IC Distributor.

You can also review a broader range of integrated circuits and related components when building or updating a BOM.

What Is an Analog IC?

Basic Definition of an Analog IC

An analog integrated circuit processes electrical signals that can change across a continuous range.

For example, a temperature sensor may produce 0.8 V at one temperature and 0.81 V at a slightly higher temperature. Both values carry useful information. The signal is not limited to an on or off state.

An analog IC may amplify that signal, remove unwanted noise, compare it with a reference, regulate its voltage, or prepare it for conversion into digital data.

The key point is signal shape. An analog circuit must preserve or control changes in voltage, current, frequency, or phase. Small errors can change the meaning of the signal.

This is why analog component selection often depends on details that look minor in a short product description. Input offset voltage, gain error, temperature drift, noise density, output swing, and common-mode range can all affect the final result.

Main Characteristics of Analog Signals

Analog signals represent physical conditions that change smoothly. Common sources include:

• Temperature
• Pressure
• Sound
• Light intensity
• Motor current
• Battery voltage
• Radio-frequency energy
• Position and movement

The signal carries more than a simple high or low state. Its amplitude may represent temperature. Its frequency may carry audio information. Its phase may help a communication system recover data.

Real analog signals are rarely clean. They may contain electrical noise, DC offset, interference, distortion, or sudden voltage spikes. The analog signal chain must control these problems before the system can make a reliable decision.

An engineer may ask whether an amplifier has enough bandwidth. A buyer also needs to check whether the selected package, temperature range, and reel suffix match the approved BOM. Both checks matter.

Common Types of Analog ICs

Analog IC Type	Main Function	Parameters Buyers Should Check
Operational amplifier	Amplifies, buffers, or filters signals	Input range, offset, noise, bandwidth, slew rate, output swing
Instrumentation amplifier	Amplifies very small differential signals	Gain accuracy, common-mode rejection, drift, input bias current
Comparator	Compares two voltage levels	Input offset, response time, hysteresis, output type
Voltage reference	Produces a stable reference voltage	Initial accuracy, drift, noise, load regulation
Linear regulator	Provides a stable output voltage	Input range, dropout voltage, current, thermal limits
Analog switch or multiplexer	Routes analog signals	On-resistance, leakage, signal range, channel count
Analog front end	Conditions sensor or measurement signals	Gain, filtering, noise, input type, converter compatibility
Audio or RF amplifier	Processes audio-frequency or radio-frequency signals	Frequency range, gain, distortion, noise figure, impedance

ADC and DAC devices are often placed in the analog category during purchasing. From a design view, they are mixed-signal ICs because they connect analog and digital sections.

That distinction matters during replacement work. A substitute ADC cannot be approved by matching resolution alone. Sampling rate, reference type, input structure, interface timing, linearity, and effective number of bits also need review.

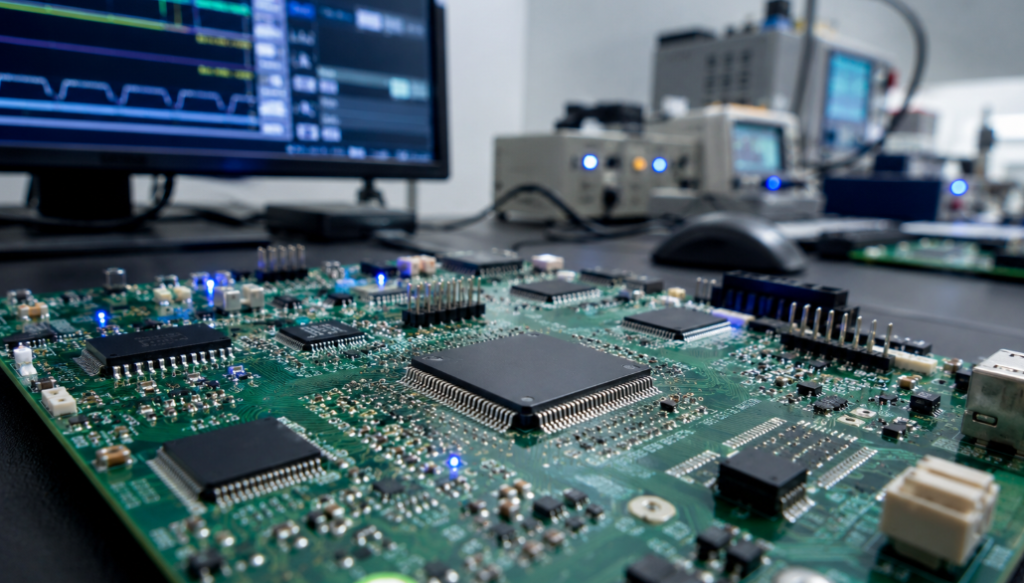

What Is a Digital IC?

Basic Definition of a Digital IC

A digital IC processes information using defined logic states.

Most digital circuits use binary logic. A signal represents either logic 0 or logic 1. Inside the chip, large groups of transistors switch, store states, perform calculations, move data, or follow programmed instructions.

Digital ICs include simple logic gates and complex processors with billions of transistors. Their functions may differ greatly, but they share one basic approach: information is handled as discrete states.

A digital IC still receives real voltage at its pins. The voltage itself is physical and continuous. The device interprets a range of voltages as low and another range as high.

For this reason, logic-level compatibility must be checked. A 1.8 V output cannot always drive a 3.3 V input correctly. The label “digital” does not remove electrical limits.

Digital Signals and Binary Logic

Digital systems use voltage thresholds to decide whether an input is high or low.

The datasheet normally gives values such as:

• VIL: the highest input voltage guaranteed to be read as low
• VIH: the lowest input voltage guaranteed to be read as high
• VOL: the maximum output voltage when driving low
• VOH: the minimum output voltage when driving high

The gap between valid input and output levels creates a noise margin. This helps digital circuits reject small disturbances.

Fast digital systems face a different set of problems. Sharp signal edges can cause ringing, electromagnetic interference, crosstalk, ground bounce, and timing errors. A signal may look correct as a 0 or 1 in a logic table and still fail on a real PCB.

Clocked circuits also depend on setup time, hold time, propagation delay, clock quality, and signal skew. These values deserve the same attention that offset and noise receive in an analog design.

Common Types of Digital ICs

Digital ICs cover several major groups.

Logic ICs perform basic functions such as AND, OR, NOT, counting, shifting, latching, and level translation. Memory ICs store program code or data. Microcontrollers combine a processor, memory, timers, communication ports, and control functions in one device.

Microprocessors support more complex computing and usually work with external memory. Digital signal processors handle repeated mathematical operations used in audio, communications, motor control, and measurement. FPGAs let engineers create custom digital hardware structures. ASICs perform functions designed for one product or system.

Some interface ICs also sit between categories. A digital isolator mainly transfers logic data, while a CAN or Ethernet transceiver includes analog line-driving and receiving stages. Product categories are useful, but the internal signal path gives a more accurate picture.

How Do Analog ICs and Digital ICs Work?

How Analog ICs Process Continuous Signals

An analog IC receives a changing voltage or current and modifies it through transistor-level circuits.

Take a sensor amplifier as an example. The signal may pass through several stages:

The input stage accepts the sensor voltage while placing as little load as possible on the sensor. A gain stage increases the signal to a useful level. A filter reduces unwanted frequencies. An output stage drives the next circuit.

Bias circuits keep internal transistors operating in the intended region. Feedback controls gain and improves stability. A voltage reference may set an accurate measurement point.

Every stage introduces limits. A high-gain amplifier may not have enough bandwidth. A low-power amplifier may respond too slowly. A device described as rail-to-rail may support rail-to-rail input, output, or both. These terms must be checked in the electrical tables rather than assumed from a short description.

PCB layout also affects analog performance. Long traces, poor grounding, noisy power rails, and a bad reference layout can reduce the value of a high-performance IC. Component choice and board design have to support each other.

How Digital ICs Process Discrete Signals

Digital ICs use transistors mainly as electronic switches.

Groups of transistors form logic gates. Logic gates form registers, counters, arithmetic units, memory cells, controllers, and processor cores. A clock may control when data moves from one stage to another.

A digital input first passes through an input buffer. The chip decides whether the voltage represents a valid low or high level. Internal logic processes that state. An output driver sends the result to another device.

Programmed digital ICs add another layer. A microcontroller follows instructions stored in memory. An FPGA follows a hardware configuration loaded into its logic resources. The same package may perform very different tasks based on firmware or configuration data.

This creates an extra purchasing question: does the buyer need blank parts, factory-programmed parts, security-enabled parts, or a certain silicon revision? A Digital IC Distributor should confirm this before shipment.

Signal Processing Flow in Both IC Types

Most modern systems use analog and digital devices together.

Signal-Chain Stage	Typical IC Function	Signal Form
Physical input	Sensor or transducer	Physical condition
Input protection	Protection and clamping circuit	Analog voltage or current
Signal conditioning	Amplifier, filter, analog front end	Conditioned analog signal
Conversion	ADC	Analog input to digital data
Processing	MCU, DSP, FPGA, or processor	Digital data
Output conversion	DAC or PWM stage	Digital data to analog control
Power or actuator drive	Driver, amplifier, or power stage	Controlled voltage or current

A medical monitor may amplify a very small biological signal, filter noise, convert the result into digital data, and then use a processor to calculate and display information. This mix of precise sensing and reliable processing is common in medical and healthcare electronics.

The quality of the digital result depends on the analog front end. A 16-bit converter cannot recover information that was clipped, distorted, or buried in noise before conversion.

The reverse is also true. A good analog signal becomes less useful when the processor uses the wrong sample rate, timing, calibration data, or digital filter.

Main Differences Between Analog ICs and Digital ICs

Signal Type and Processing Method

Comparison Area	Analog IC	Digital IC
Signal type	Continuous voltage or current	Discrete logic states
Main purpose	Amplification, filtering, regulation, sensing, conversion	Calculation, storage, control, communication
Key design concerns	Noise, offset, drift, gain, bandwidth, stability	Logic levels, timing, clocking, memory, data integrity
Common errors	Distortion, saturation, instability, measurement drift	Timing failure, invalid logic level, data corruption
Typical verification	Waveform, noise, gain, frequency response	Logic state, timing diagram, protocol, firmware
Replacement risk	Similar headline specifications may behave differently	Same function may use different pinout, timing, or code support

The practical difference is how information is represented. Analog circuits preserve detail inside the signal level. Digital circuits convert information into defined states that can be stored and processed.

Accuracy, Speed, and Noise Immunity

Digital does not automatically mean more accurate.

A digital calculation can repeat the same operation with very little variation. The measurement entering that calculation still depends on analog performance. ADC reference error, front-end noise, offset, nonlinearity, and temperature drift may limit real accuracy.

Resolution also differs from accuracy. A 16-bit ADC provides many output codes. It may deliver fewer useful bits once noise and error are included. Buyers should check effective resolution, signal-to-noise ratio, integral nonlinearity, differential nonlinearity, and reference requirements.

Analog circuits can respond with very low delay because they do not always need sampling, clocking, or software processing. A comparator can react directly to a changing input. A digital system may offer more flexible processing, but conversion and computation add latency.

Digital signals usually tolerate small voltage noise better because the receiver uses logic thresholds. High-speed digital signals can become sensitive to jitter, reflections, power noise, and PCB geometry. Noise immunity depends on the full system, not the word “digital.”

4.3 Power, Design Difficulty, and Cost

Analog and digital power consumption cannot be compared with a simple rule.

Many analog circuits draw steady bias current even when the signal changes slowly. Low-noise and high-speed analog devices may need more current to maintain their performance.

Digital dynamic power rises as switching activity, clock frequency, capacitance, and supply voltage increase. A digital device may use very little power in sleep mode and much more while processing data. Leakage current also becomes important in advanced processes.

Analog design often needs careful component selection, grounding, calibration, and stability analysis. Digital design may need firmware, signal-integrity work, memory planning, protocol validation, and toolchain support.

Cost should be measured at the system level. A low-cost IC may need extra filters, references, level shifters, PCB layers, calibration time, or software work. A device with a higher unit cost may reduce the total number of components and shorten development work.

The core question is not which IC is cheaper. Ask which architecture meets the required performance with acceptable design, test, sourcing, and lifecycle risk.

5. Where Are Analog ICs and Digital ICs Used?

5.1 Typical Applications of Analog ICs

Analog ICs are used wherever electronics connect with physical signals or power.

Sensor interfaces use amplifiers, filters, voltage references, and converters to measure temperature, pressure, current, light, position, or movement. Power systems use regulators, controllers, supervisors, and gate drivers to manage voltage and current.

Audio systems depend on preamplifiers, codecs, filters, and power amplifiers. Communication equipment uses low-noise amplifiers, mixers, oscillators, variable-gain amplifiers, and RF converters.

Motor-control systems measure current and voltage through analog circuits before the control algorithm reacts. Test and measurement equipment relies on low-noise amplifiers, precision references, and high-resolution converters.

In these applications, the Analog IC Distributor should understand more than the base part number. Input range, noise, drift, package, temperature grade, qualification, and factory suffix can change the suitability of the part.

Typical Applications of Digital ICs

Digital ICs manage decisions, data, control, storage, and communication.

Microcontrollers run appliances, instruments, control panels, battery systems, motor drives, sensors, and embedded products. Memory devices store firmware, settings, logs, images, and operating data.

Logic ICs handle timing, level translation, counting, switching, and signal routing. Processors support computing, networking, displays, industrial computers, and data systems. FPGAs perform high-speed parallel processing and custom interface work.

Digital IC selection often depends on software support. A processor with suitable hardware may still be a poor choice when the development tools, libraries, operating system support, or long-term supply plan do not fit the project.

A buyer replacing a digital device should check silicon revision, firmware compatibility, programming needs, memory size, package, temperature range, and interface timing.

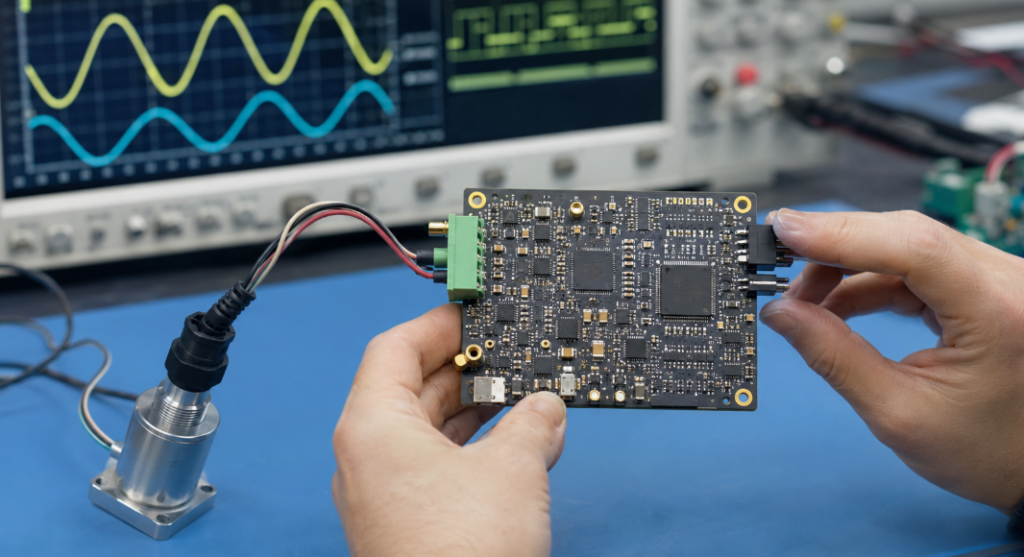

Cooperation in Mixed-Signal Systems

Modern products rarely stay fully analog or fully digital.

An industrial sensor may use an analog front end, ADC, digital processor, isolated interface, and analog output driver in one signal path. A motor drive may combine current-sense amplifiers, comparators, a real-time microcontroller, gate drivers, and power semiconductors.

These mixed architectures are common in PLCs, robotics, machine tools, motor control, and factory equipment. You can see the wider component requirements used in industrial automation applications.

Mixed-signal design creates boundary problems. Digital switching noise may enter the analog ground. A poor reference voltage may reduce ADC performance. An incorrect level shifter may damage an input. A clock line may interfere with a sensitive sensor trace.

The analog and digital sections should not be selected in isolation. Review the power tree, grounding plan, reference circuit, interface voltage, clock source, sampling rate, and PCB layout as one system.

6. How to Choose an Analog IC or Digital IC

Choose Based on the Signal Type

Start with the signal entering and leaving the circuit.

Ask what creates the input. Is it a sensor voltage, audio waveform, current loop, digital bus, switch state, or stored data?

Next, define what the circuit must do. Does it need to amplify, filter, compare, convert, calculate, store, communicate, or drive a load?

A continuous sensor signal usually needs an analog path before digital processing. A control instruction already produced by a processor may only need digital logic or an interface IC.

Do not select a part only because its product category sounds correct. Trace the full input-to-output path.

Choose Based on Performance and Power Requirements

Use measurable limits rather than broad terms such as “high precision” or “low power.”

Design Need	Analog Parameters to Review	Digital Parameters to Review
Supply compatibility	Input voltage, output swing, PSRR, dropout	Core voltage, I/O voltage, power sequence
Signal quality	Noise, offset, drift, distortion, linearity	Logic margin, jitter, bit-error rate
Speed	Bandwidth, settling time, slew rate	Clock rate, propagation delay, setup and hold time
Power	Quiescent current, shutdown current, thermal load	Active current, sleep current, switching activity
Environment	Temperature drift, humidity sensitivity, stability	Temperature grade, timing shift, memory retention
Interface	Input impedance, output drive, common-mode range	Protocol, voltage threshold, pin function, drive current

For an operational amplifier, check whether the input common-mode range includes the real signal. Confirm that the output can reach the required voltage under the actual load. Review gain-bandwidth product and slew rate together.

For a digital device, confirm the logic family, voltage thresholds, clock source, interface version, timing, memory size, and programming method. A part with a similar name may use a different package or pin assignment.

For mixed-signal converters, check resolution, sampling rate, input type, reference source, effective number of bits, SNR, INL, DNL, data interface, and latency.

Choose Based on the Actual Application

The application decides which specifications deserve the most weight.

A battery-powered sensor may favor low sleep current and fast wake-up time. A factory controller may place more weight on temperature range, noise immunity, isolation, lifecycle, and stable supply. Automotive electronics may require approved automotive-grade parts. Medical equipment may need low noise, predictable drift, and strong traceability controls.

Procurement requirements belong in the decision from the beginning. Before sending an RFQ, prepare:

• Full manufacturer part number
• Manufacturer name
• Package and mounting type
• Required quantity
• Operating temperature grade
• Packaging format
• Compliance document needs
• Date-code or lot requirements
• Target delivery schedule
• Approved alternative rules

The suffix is especially important. It may identify package type, tape-and-reel quantity, temperature grade, qualification level, pin configuration, lead finish, or factory option.

An experienced Analog IC Distributor should verify the complete suffix rather than quote from the base number alone. A Digital IC Distributor should also check programming state, revision, logic voltage, memory configuration, and package details.

For package outlines, lead-free manufacturing references, registered outlines, and other microelectronics documents, buyers can consult the JEDEC standards and publications system. JEDEC develops widely used standards for microelectronics, including packaging, memory, lead-free processes, and reliability-related areas.

Compliance must be checked against the destination market and final equipment. The European Commission’s RoHS information explains restrictions on hazardous substances in electrical and electronic equipment. The supplier should provide applicable declarations without claiming that a document covers products or markets outside its scope.

For REACH-related checks, review the latest ECHA Candidate List. Candidate List updates may create communication or notification duties for companies handling articles that contain listed substances. Ask for current documentation rather than reusing an old declaration from a previous order.

Alternative selection needs the same discipline. Never approve a replacement based only on function name, package shape, or one headline parameter. Compare pinout, electrical limits, dynamic behavior, thermal data, qualification, lifecycle, and application notes. Engineering should approve the final substitute and test it in the real circuit.

Conclusion

Analog ICs work with continuous electrical signals. They are used for sensing, amplification, filtering, power control, signal conditioning, and conversion.

Digital ICs process discrete logic states. They are used for computation, memory, control, timing, and data communication.

Most useful electronic systems combine both. The analog section connects the circuit to physical signals. The digital section stores, processes, and controls information. Mixed-signal devices build a bridge between the two.

When choosing between Analog IC vs Digital IC options, begin with the signal path. Then check accuracy, speed, noise, power, package, temperature, compliance, lifecycle, and supply requirements.
