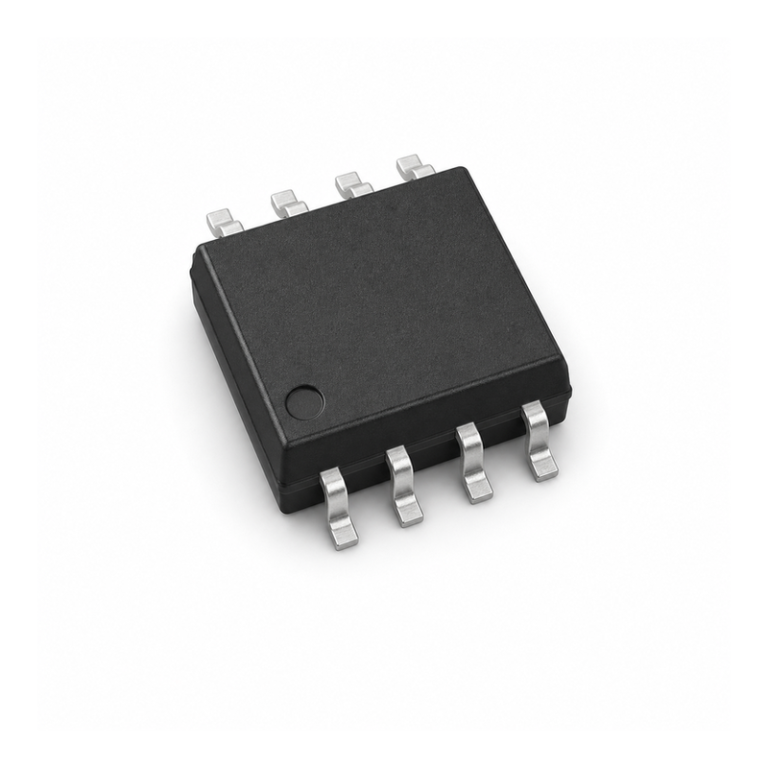

ADM485ARZ 5V Low-Power RS-485/RS-422 Transceiver SOIC-8
- Manufacturer: Analog Devices
- Manufacturer Part Number (MPN): ADM485ARZ
- Product Category: RS-485/RS-422 Transceiver
- Series: ADM485
- Package / Case: SOIC-8
- Mounting Type: Surface Mount
- RoHS Status: RoHS Compliant
- Lifecycle Status: Active
- Availability: Request a Quote
- Lead Time: Contact Sales
- Shipping Method: DHL / FedEx / UPS
The Analog Devices ADM485ARZ is a low-power half-duplex RS-485 and RS-422 transceiver operating from a single 5V supply. Its differential driver and receiver support robust multipoint serial communication in industrial controls, building automation, instrumentation, security systems, motor drives, and long-distance data networks.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Analog Devices |
| Manufacturer Part Number | ADM485ARZ |
| Product Category | RS-485/RS-422 Transceiver |
| Series | ADM485 |
| Interface Standard | RS-485 and RS-422 |
| Duplex Mode | Half duplex |
| Maximum Data Rate | 5Mbps |
| Supply Voltage | 5V |
| Unit Loads | 32 nodes maximum |
| Package / Case | SOIC-8 |
| Mounting Type | Surface Mount |
| Product Status | Active |
| RoHS Status | RoHS Compliant |
| Packaging | Tape & Reel |
