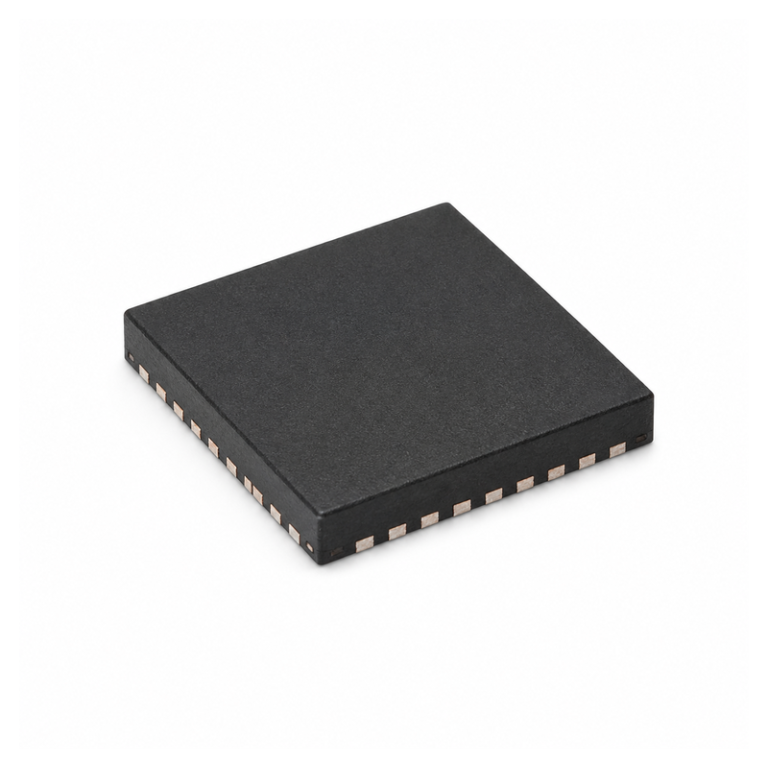

ADMV1014ACCZ 24GHz to 44GHz Microwave Downconverter LGA-32
- Manufacturer: Analog Devices
- Manufacturer Part Number (MPN): ADMV1014ACCZ
- Product Category: Microwave Downconverter
- Series: ADMV1014
- Package / Case: LGA-32, 5 x 5mm
- Mounting Type: Surface Mount
- RoHS Status: RoHS Compliant
- Lifecycle Status: Active
- Availability: Request a Quote
- Lead Time: Contact Sales
- Shipping Method: DHL / FedEx / UPS
The Analog Devices ADMV1014ACCZ is a wideband microwave downconverter designed for RF inputs from 24GHz to 44GHz. Integrated quadrature mixing, programmable gain, baseband filtering, and local-oscillator multiplication simplify 5G millimeter-wave receivers, point-to-point radio, phased-array systems, instrumentation, and broadband wireless links.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Analog Devices |
| Manufacturer Part Number | ADMV1014ACCZ |
| Product Category | Microwave Downconverter |
| Series | ADMV1014 |
| RF Input Frequency | 24GHz to 44GHz |
| LO Input Frequency | 5.4GHz to 10.25GHz |
| LO Multiplier | Integrated x4 |
| Output Type | Differential I/Q baseband |
| Application | Millimeter-wave receive chains |
| Package / Case | LGA-32, 5 x 5mm |
| Mounting Type | Surface Mount |
| Product Status | Active |
| RoHS Status | RoHS Compliant |
| Packaging | Tape & Reel |
