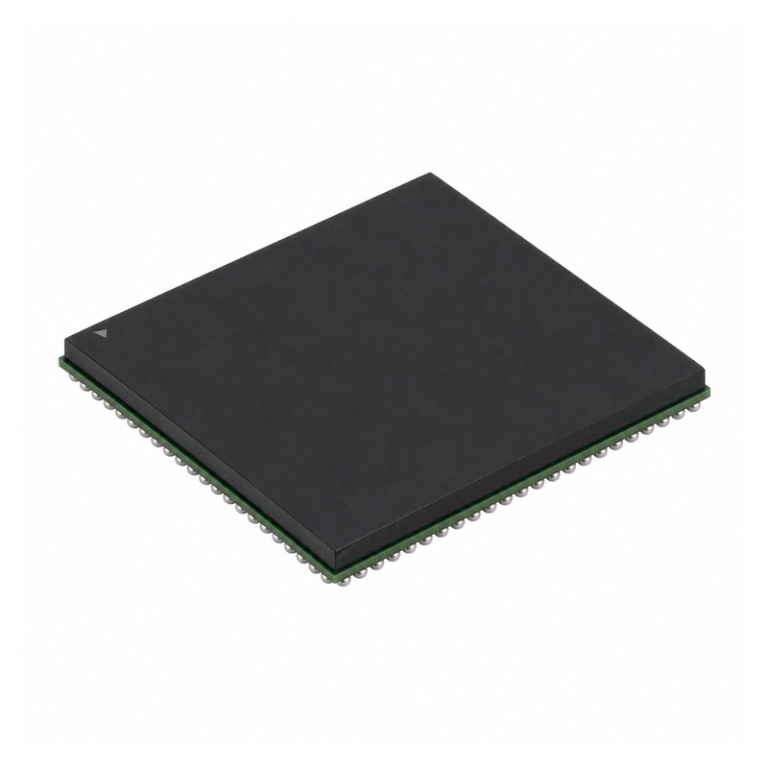

ADSP-21569KBCZ-8A 1GHz High-Performance SHARC+ DSP BGA-400
- Manufacturer: Analog Devices
- Manufacturer Part Number (MPN): ADSP-21569KBCZ-8A
- Product Category: SHARC+ Digital Signal Processor
- Series: ADSP-2156x
- Package / Case: CSP-BGA-400
- Mounting Type: Surface Mount
- RoHS Status: RoHS Compliant
- Lifecycle Status: Active
- Availability: Request a Quote
- Lead Time: Contact Sales
- Shipping Method: DHL / FedEx / UPS
The Analog Devices ADSP-21569KBCZ-8A is a high-performance SHARC+ digital signal processor for real-time audio and signal processing. A 1GHz-class core, large on-chip memory, FIR and IIR accelerators, flexible serial ports, and external-memory interfaces support professional audio, communications, instrumentation, conferencing, and computationally intensive embedded systems.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Analog Devices |
| Manufacturer Part Number | ADSP-21569KBCZ-8A |
| Product Category | SHARC+ Digital Signal Processor |
| Series | ADSP-2156x |
| Processor Core | SHARC+ |
| Maximum Core Clock | 1GHz class |
| On-Chip Memory | Up to 5Mb SRAM class |
| Accelerators | FIR, IIR, and FFT support |
| Interfaces | SPORT, SPI, UART, and external memory |
| Package / Case | CSP-BGA-400 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C to +85°C |
| Product Status | Active |
| RoHS Status | RoHS Compliant |
| Packaging | Manufacturer / OEM Packaging |
