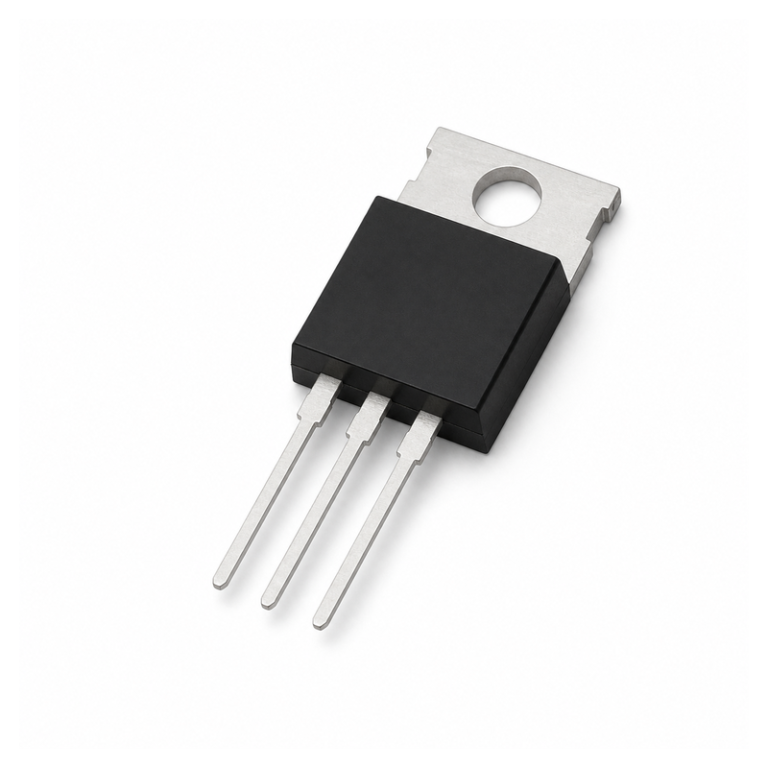

IRLZ44NPBF Logic-Level N-Channel Power MOSFET 55V 47A TO-220AB
Manufacturer: Infineon Technologies
Manufacturer Part Number (MPN): IRLZ44NPBF
Product Category: Logic-Level N-Channel MOSFET
Series: HEXFET
Package / Case: TO-220AB
Mounting Type: Through Hole
RoHS Status: RoHS Compliant
Lifecycle Status: Active
Availability: Check Availability
Lead Time: Contact for Lead Time
Shipping Method: DHL / FedEx / UPS
The IRLZ44NPBF from Infineon Technologies is a logic-level N-channel power MOSFET for motor drives, power switching, and DC load control. It is rated for 55V drain-source voltage and 47A continuous drain current, with low on-resistance and enhanced performance from logic-level gate drive in a TO-220AB package.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Infineon Technologies |
| Manufacturer Part Number | IRLZ44NPBF |
| Product Category | Logic-Level N-Channel MOSFET |
| Series | HEXFET |
| Transistor Type | Logic-Level N-Channel MOSFET |
| Drain-Source Voltage | 55V |
| Continuous Drain Current | 47A at 25 C case temperature |
| Pulsed Drain Current | 160A |
| RDS(on) | 22mOhm maximum at VGS = 10V |
| Power Dissipation | 110W |
| Operating Junction Temperature | -55 C to +175 C |
| Package / Case | TO-220AB |
| Pin Count | 3 Pins |
| Mounting Type | Through Hole |
| Product Status | Active |
| RoHS Status | RoHS Compliant |
| Packaging | Tube |
